Features
Stop Signal (ESS)
Smart signals that flash under hard braking so others around you react faster, when seconds matter.

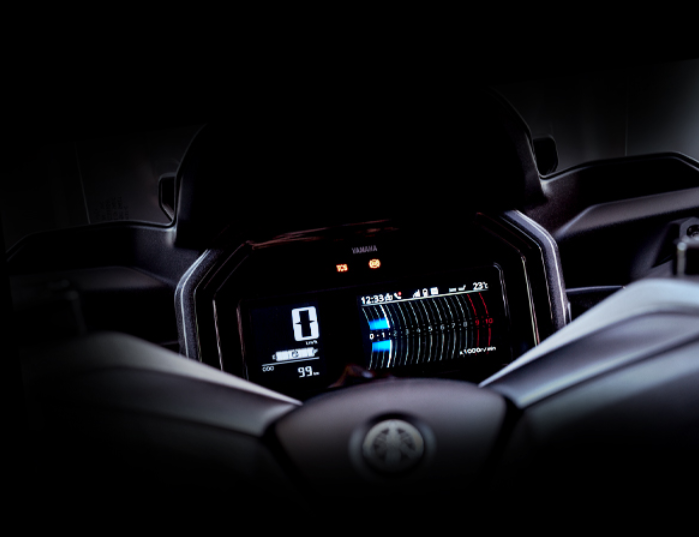

Dual-Screen
TFT Display
4.2″ TFT + 3.2″ LCD
Remapped
Traction Control
Smoother grip. More confident handling, rain or shine.

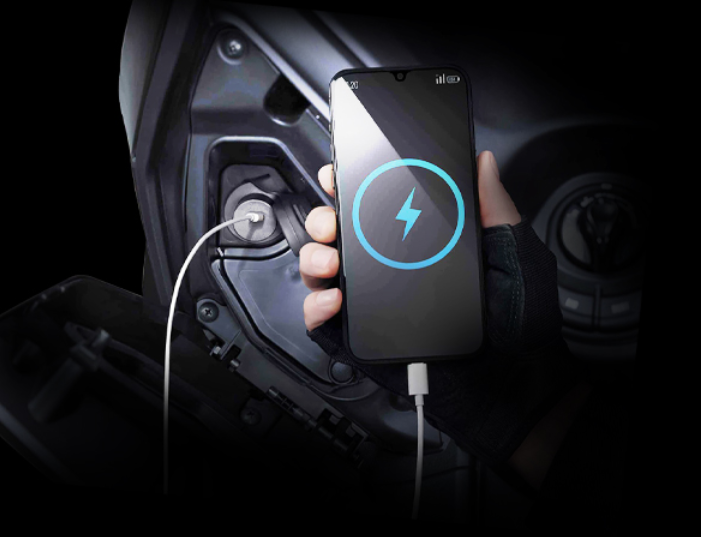

Updated USB-C
Charging Port
Power up your devices with the modern standard.

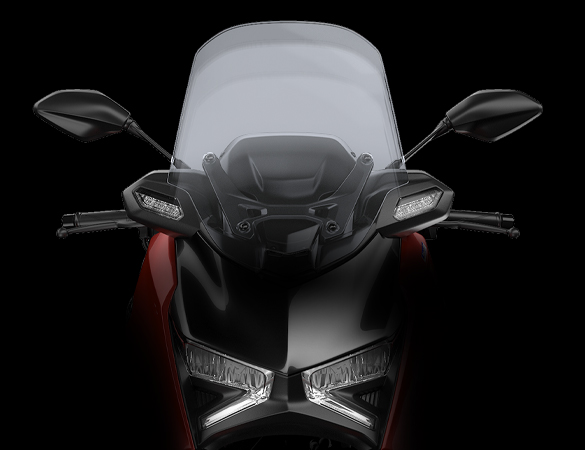

Electronically Adjustable
Windshield
Adjust on the go for comfort that keeps up with your ride.
.jpg)
Integrated Rear Mirrors
with Signal Lights
Smoother airflow. Sleeker profile. Sharper awareness.
ASSESSMENT
ICONS
MyMAP uses four recognizable icons to refer to its four main pillars of assessment – Compliance to United Nation Regulations , Conformity of Production, Safety Technology and Support Programme.
-
-
- Compliance to UN regulations
- Audit & Analysis on Conformity of Production
- Assessment of safety features & new technology
- Assessment of support programme provided to buyer
-
Specification
Engine
- TYPE
- Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves
- BORE X STROKE
- 70.0 mm x 64.9 mm
- DISPLACEMENT
-
249.8 cc - MAX POWER
- 16.8 kW @ 7,000 rpm
- MAX TORQUE
-
24.3 Nm @ 5,500 rpm - FUEL SYSTEM
- Fuel Injection
- LUBRICATION SYSTEM
- Wet Sump
- TRANSMISSION SYSTEM
- V-Belt Automatic
- STARTER
- Electric
- Specifications change without prior notice
Chassis
- FRONT SUSPENSION
- Telescopic forks
- REAR SUSPENSION
- Unit Swing
- FRONT TRAVEL
- 110 mm
- REAR TRAVEL
- 79 mm
- FRONT TYRE
- 120/70-15
- REAR TYRE
- 140/70-14
- SEAT HEIGHT (mm)
- 805 mm
- OVERALL LENGTH (mm)
- 2,180 mm
- OVERALL WIDTH (mm)
- 795 mm
- WHEELBASE (mm)
- 1,540 mm
- GROUND CLEARANCE (mm)
- 135 mm
- FUEL CAPACITY (Liter)
- 13 L
- CURB WEIGHT
- 183 kg
Note: Specifications are for reference only and may change without prior notice.
